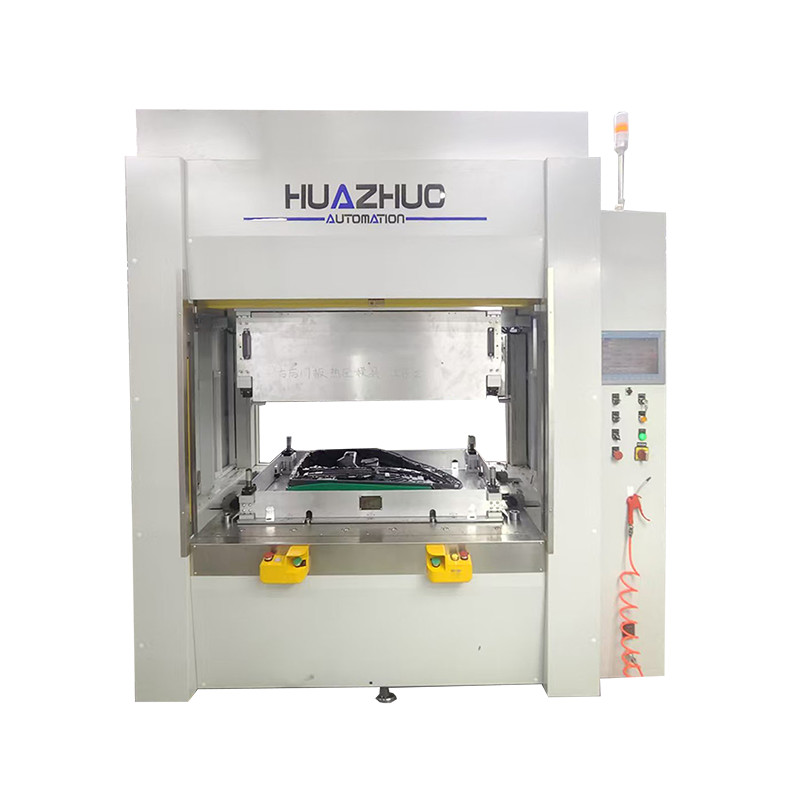

Servo-Driven Hot Riveting Welding Machine for Automotive Door Panel Assembly
Product Overview
The Servo-Driven Hot Riveting Machine from HUAZHUO Automation is engineered for the high-strength assembly of automotive interior door panels. Ideal for plastic-on-plastic and mixed-material applications, this equipment utilizes advanced servo systems to precisely control the riveting force and depth. Designed to meet the increasing demands of vehicle interior quality, it ensures seamless, repeatable joints with superior aesthetic and structural results.
With flexible tooling and customizable parameters, this hot riveting system is widely used for car door trims, dashboard components, center consoles, and other automotive interior plastic assemblies.
Key Features
lServo-Controlled Riveting Heads – Consistent pressure and depth for accurate, repeatable hot rivet formation.
lModular & Flexible Tooling – Interchangeable fixtures allow quick adaptation to different panel designs.
lPLC + HMI Interface – Intuitive touchscreen for process control, English display, recipe saving, and system diagnostics.
lCNC-Machined Clamping Fixtures – Guarantee perfect alignment during the riveting process.
lOptional Safety Enhancements – Light curtain, emergency stop, and full guarding systems available.
lDesigned for Multi-Rivet Applications – Ideal for large-format automotive door panels requiring multiple fixation points.
Technical Specifications
|
Item Name |
Servo-Driven Hot Riveting Welding Machine for Automotive Door Panel Assembly |
|
Model |
HZ-RMH1400 |
|
Voltage |
380V / Customizable |
|
Controlling System |
PLC |
|
Drive Mode |
Servo Drive / Customizable |
|
Weight |
4T |
|
Composite Pressure |
1.5T |
|
Machine External Dimensions |
2200*1100*2100(L×W×H)mm / Customizable |
|
Mould Size |
1280*890*650(L×W×H)mm / Customizable |
|
Maximum Number of Welding Points |
96 hot riveting points |
|
Number of Temperature Control Modules |
12 |
|
Mold Change |
When changing the mold, just push it onto the machine, align it, tighten 6 screws on each side, and insert the safety pin |
|
Supported Materials |
EPP, ABS, PE, PC+ABS, PA66,etc |
|
Applications |
Automotive door trims, center consoles, dashboards, inner panels |
1-Year Warranty
Online Technical Support
Video Operation Guidance
On-site Commissioning (Optional)
With over 12 years of experience, HUAZHUO Group is a trusted provider of plastic welding and hot riveting automation solutions for the automotive industry. As a leading manufacturer in China, we serve global Tier 1 suppliers and OEMs with:
Servo hot plate plastic welding automated machine
Ultrasonic welding automated machine
Hot riveting automation solutions
Bumper punching + welding machines
Covering and Laminating assembly lines for interior/exterior trim
Our equipment is engineered to meet the highest standards for strength, appearance, and production efficiency — empowering manufacturers worldwide to deliver defect-free components.
Application Highlights

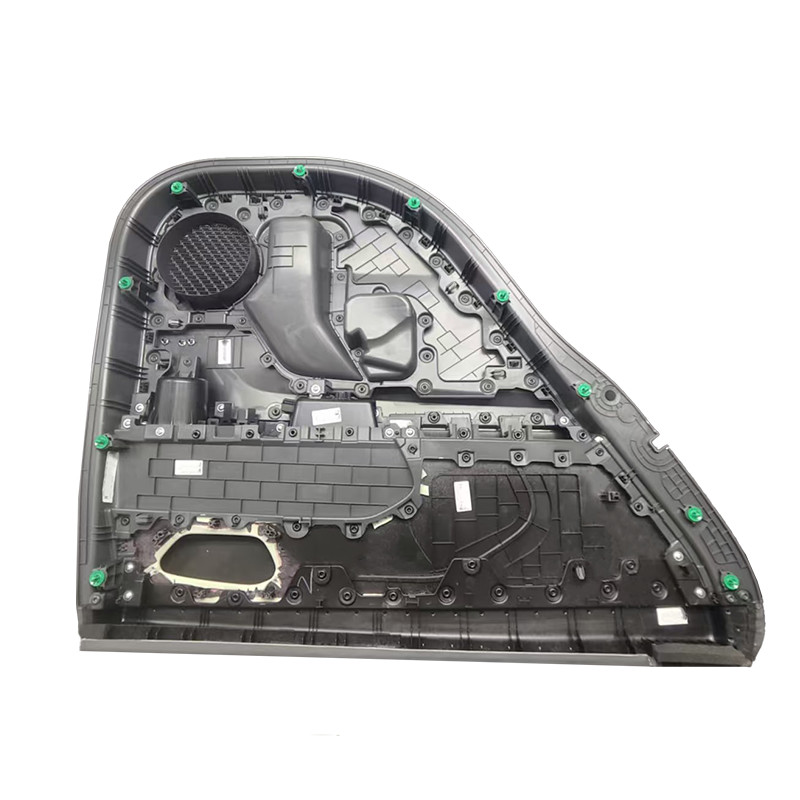

Door panels with integrated map pockets
Storage trays & glove boxes
Console brackets and reinforcements
Dashboard assemblies
Seat back and side trims,etc
